Abstract: Ground fault protection for electrical circuits, equipment and electrical fire accidents caused by ground fault currents are increasingly becoming a daily necessity. For the main energy-consuming nodes on the user side, a residual current relay is designed and installed to monitor the residual current status of each energy-using circuit in real time. Through real-time monitoring of energy use and related power parameters, the safety, reliability and maintenance efficiency of energy use are improved, the labor cost of maintenance is reduced, and the unattended monitoring of residual current is realized. Through the real-time monitoring of energy use, data collection and alarm, the residual current in the power distribution system is monitored, and the ground fault protection of the user's electrical circuit is provided to prevent fire accidents and personal electric shock accidents caused by residual current. Here is a brief introduction to the application of our company's ASJ residual current relay in the water terrace house project around the island Maldives.
0.Project Overview
The water townhouses around the island in the Maldives are mainly used to receive tourists from all over the world. The application site frequency is 50 Hz and the voltage is 220V TT or TN system power distribution lines. The customer hopes to monitor the residual current of the line by installing a residual current relay in the distribution cabinet of the water row house, and hopes that the ratio of the real-time monitored residual current value to the set residual current value can be displayed on the display panel, when the ratio reaches 80%, the residual current relay can alarm immediately. Acrel ASJ10-LD1A cooperates with the residual current transformer, Successfully solved the customer's on-site residual current monitoring needs.
1.ASJ Series Residual Current Relay
ASJ series current action relays can be combined with low-voltage power supplies or low-voltage contactor to form a combined power supply current protection, mainly used for AC 50Hz, voltage and below TT400V devices and TN system piping, in addition to ground fault protection for electrical circuits to prevent ground faults Common equipment damages and electrical failures caused by this can also prevent the danger of personal electric shock and provide direct contact protection.
The product meets the requirements of GB/T 22387-2016 "Catalyst Current Relay".
ASJ series sanitary current relays integrate line over-voltage and under-voltage protection functions and automatic additional functions for normal voltage. The product is small in size, high in precision, flexible in structure and easy to install. It is a safety protection device in the field of civil construction.

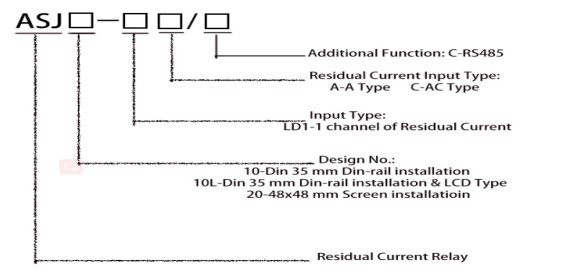

2.Model description
Types of Products
Note1：The function of setting for relay means that you can set the initialization and the output of the relay by yourself, which is acted by the dial switch on the panel; the specific setting guide can be found from the table 5.
Note2：OPTIONAL FUNCTION C: RTU Communication RS485, Model ASJ10L-LD1A/C

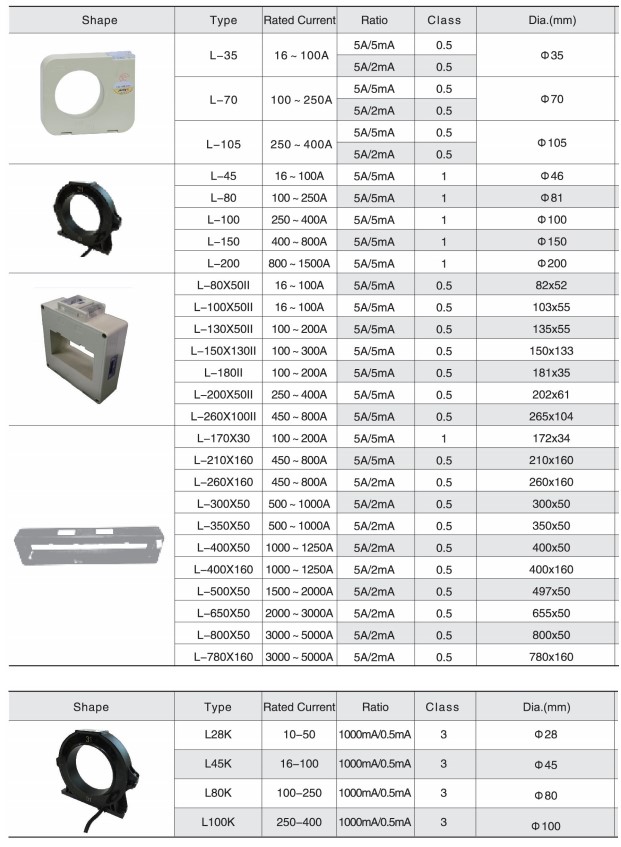

3.Model Selection of Residual Current Relay

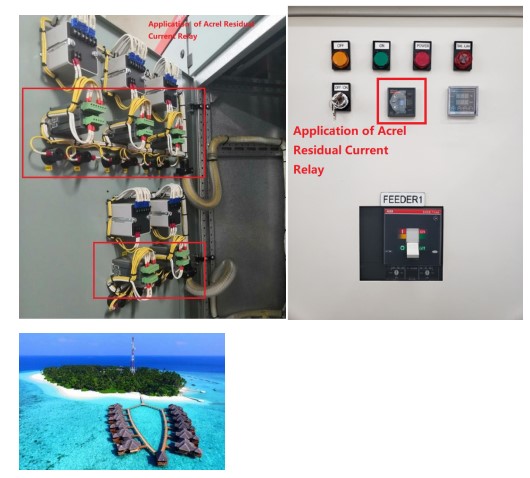

4.Installation picture
5.Summary
ASJ series residual current relay has a very high performance-price ratio. As an advanced intelligent and digital residual current monitoring instrument, the residual current relay has been widely used in the incoming line or single-phase or three-phase of the household sub-box of civil buildings. Electric equipment in the power distribution line.
Bibliography
1.Solutions For Enterprise Micro-grid System 2021.04
